15ton Hydraulic Punch Kit w/ 10 Dies Red

Features:

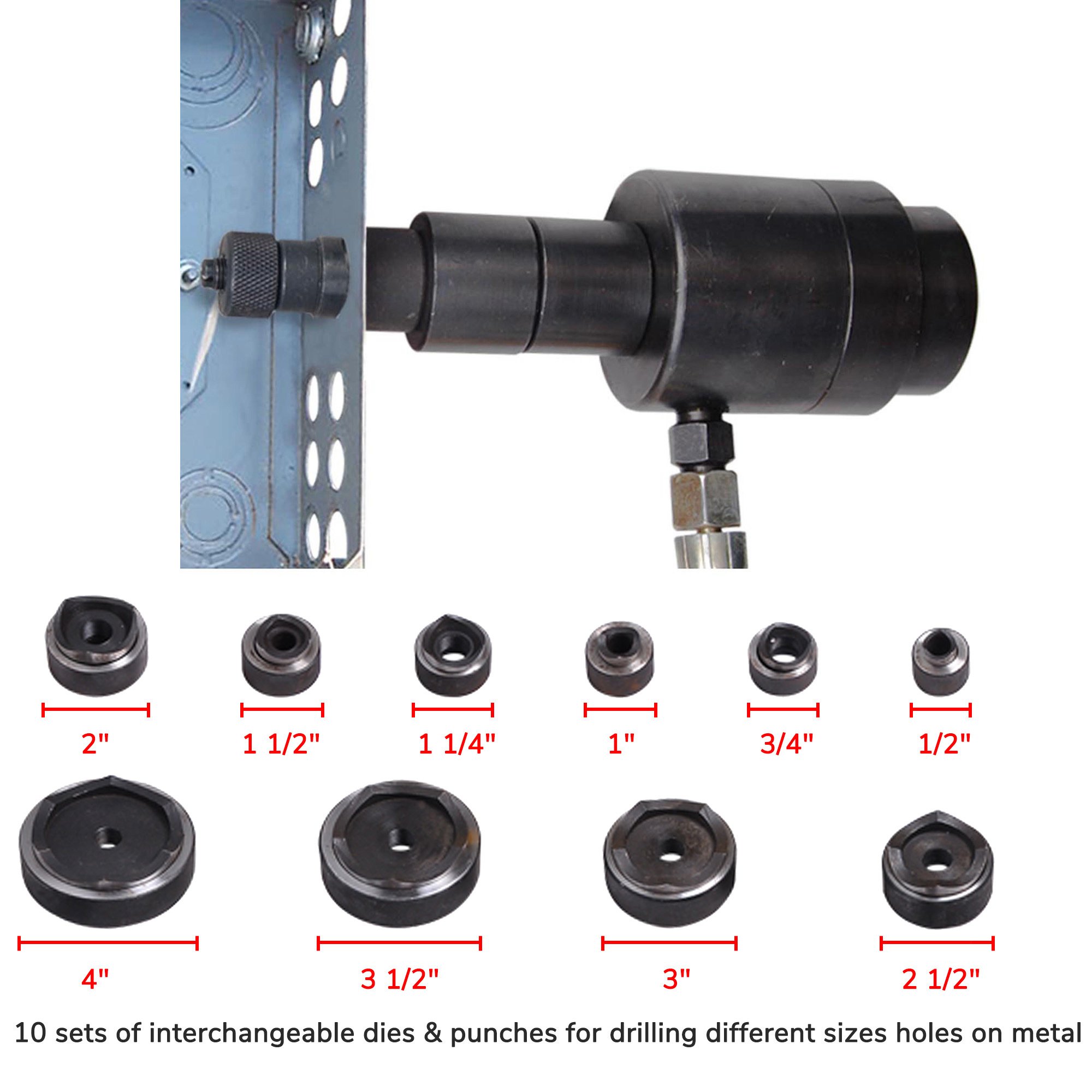

- Complete   Punch Tools - Hydraulic punch tool kit features 1pc 15-ton pump; 2pcs draw   studs; 2pcs piston shaft; 2pcs spacers and 10 sets of interchangeable dies   & punches fitting for 1/2"; 3/4"; 1"; 1 1/4"; 1   1/2"; 2"; 2 1/2"; 3"; 3 1/2" and 4" conduit   sizes; can drill different sizes holes on stainless steel; iron; steel;   aluminum; plastic; etc; 1/8' (11 gauge) max punching thickness for iron and   1/16' (16 gauge) for stainless steel; perfect to be used for different   drilling projects

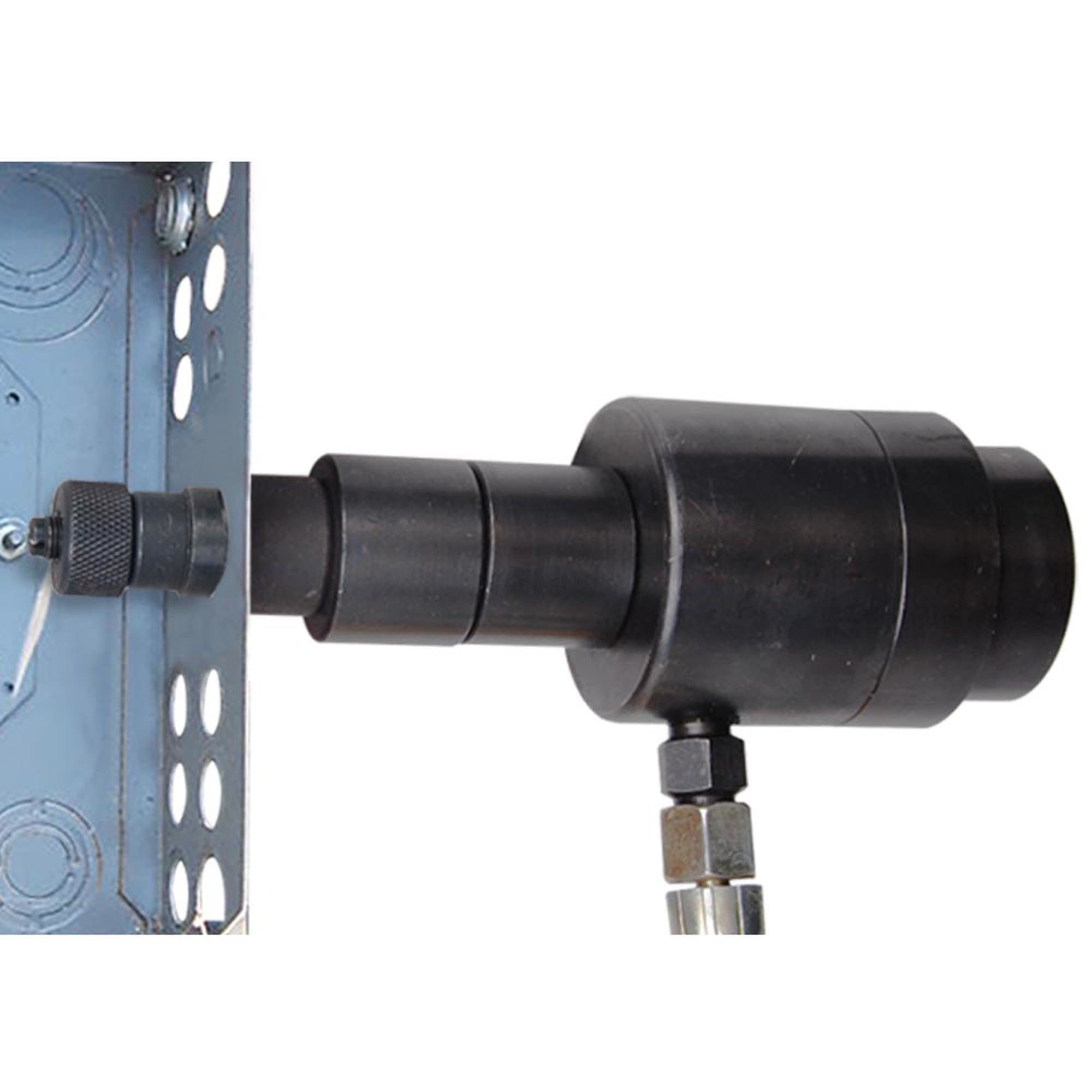

- Efficient Hydraulic Design -   Hydraulic mechanism pump produces 15T strong pressure for providing high   punching accuracy and fast punching speed which is 10 times much faster than   common wrenches; more labor-saving on punching uniform holes; pump with pressure   hose for adjusting the angle of the ram flexibly to meet your punching needs;   perfect for using in narrow places

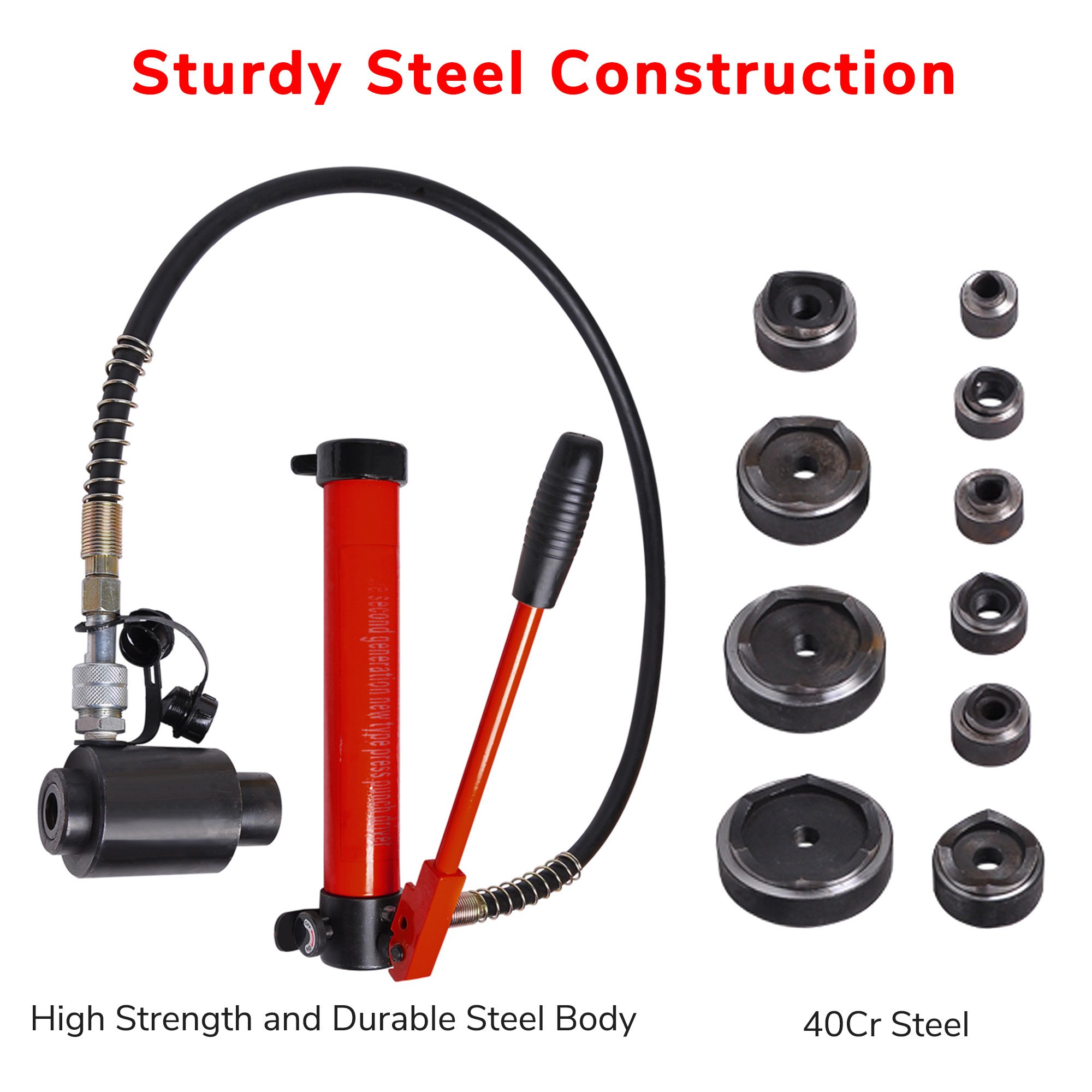

- Sturdy Steel Construction -   40Cr steel dies and 45# steel pump body for ensuring high strength;   sturdiness and durability; stable construction is suitable for heavy-duty and   frequent punching works

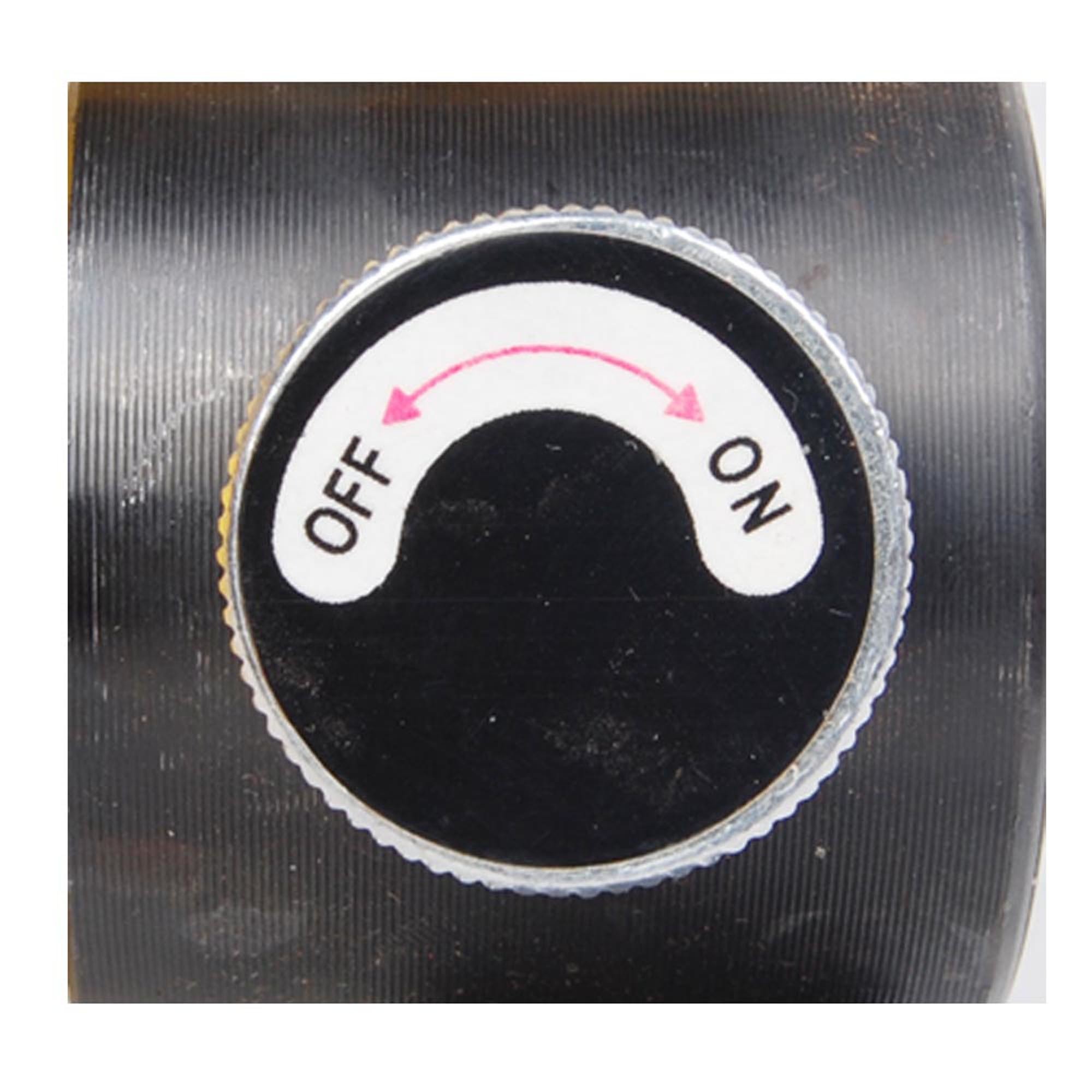

- Convenient Operation -   Rotatable "on/off" knob on the pump for quick releasing pressure   after drilling holes and safety valve for releasing pressure automatically   when the pressure reaches the max value; perfect for adding more safety;   anti-skid plastic grip at the end of the handle for easy and comfortable   pressing

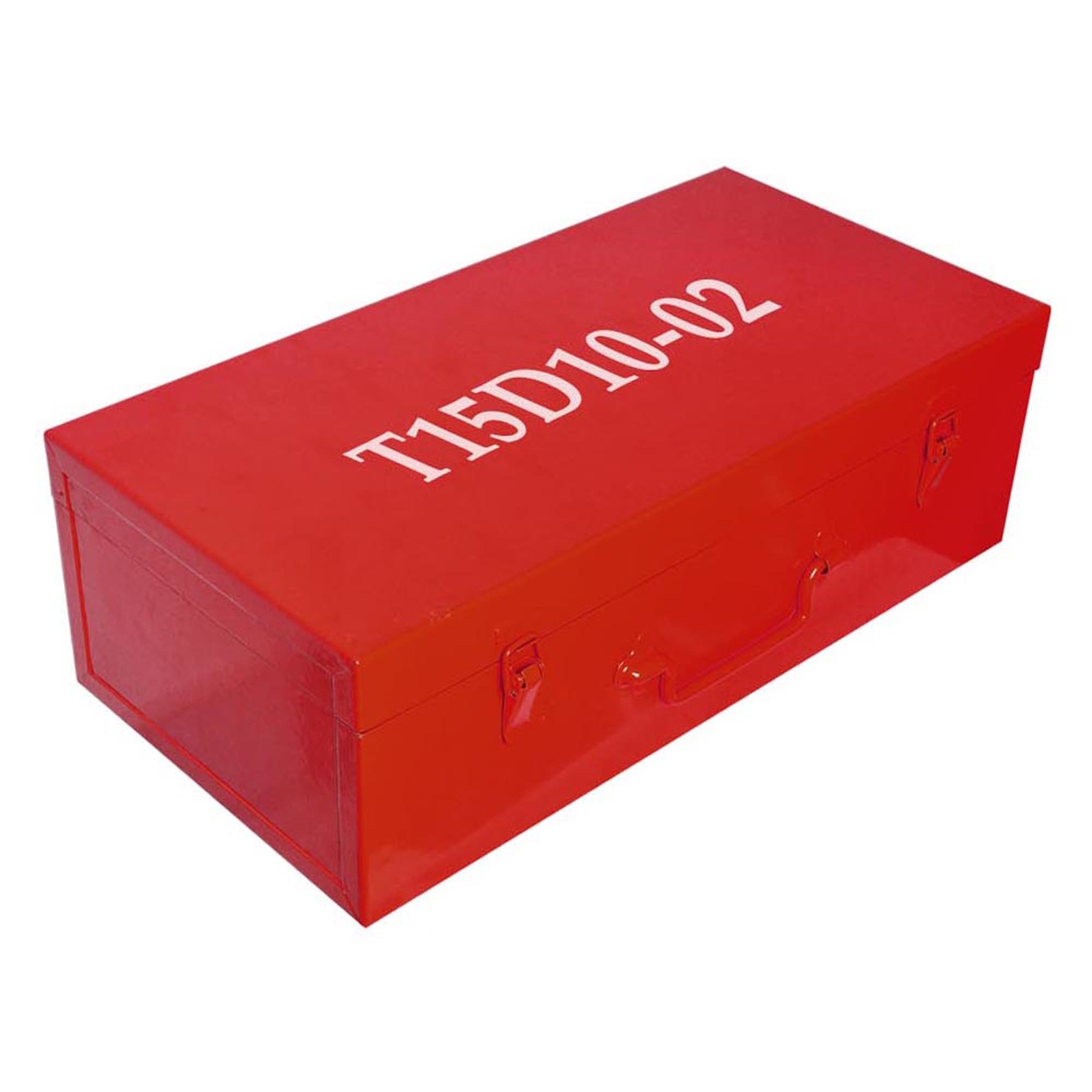

- Portable & Wide   Application - Sturdy metal case with handle and double metal locks for   convenient and safe storage; keeping all accessories in place and providing   portability; widely used on installing and repairing wire pipeline; signal   lamp and instrument on construction sites; metallurgy; petrol; electronics;   electrical appliance; chemical industry; ship and machinery; etc.

Specification:

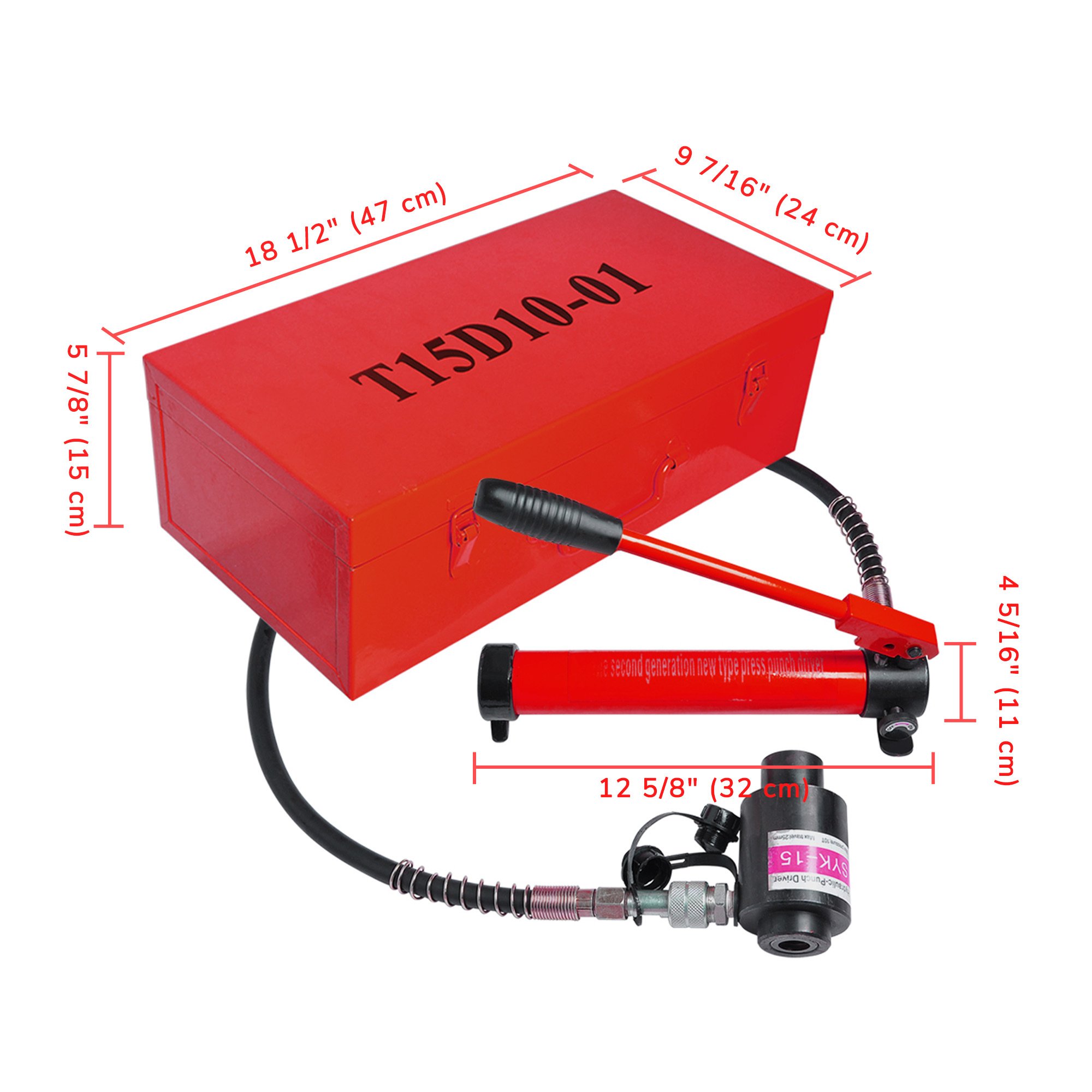

- Pump   Dimension(LxWxH): 12 5/8" x 4 5/16" x 4 5/16" (32 x 11 x 11   cm)

- Metal Case Dimension(LxWxH):   18 1/2" x  9 7/16" x 5   7/8" (47 x 24 x 15 cm)

- 10 Dies & Punches Sizes:   1/2"; 3/4"; 1"; 1 1/4"; 1 1/2"; 2"; 2   1/2"; 3"; 3 1/2"; 4"

- Drilling Hole Size: 7/8'   (22.5mm); 1 1/8' (28.3mm); 1 3/8' (34.6mm); 1 11/16' (43.2mm); 1 15/16'   (49.6mm); 2 7/16' (61.5mm); 2 15/16' (74mm); 3 9/16' (89.9mm); 4 1/16'   (102.7mm); 4 9/16' (115.4mm)

- Draw Stud Size(LxDia.): 4   1/8" x 5/16" (10.5 x 0.78 cm)

- Piston Shaft Sizes(LxDia.): 4   3/4" x 3/4" (12 x 1.9 cm); 3 1/8" x 3/4" (8 x 1.9 cm)

- Hose Length: 50 3/8"   (128 cm)

- Max Pressure: 15 ton

- Material: 45# Steel; Aluminum   Alloy; 40Cr Steel

- Max Thickness for Iron:   1/8" (11 gauge)

- Max Thickness for Stainless   Steel: 1/16" (16 gauge)

- Net Weight: 48.5 Lbs (22 kg)

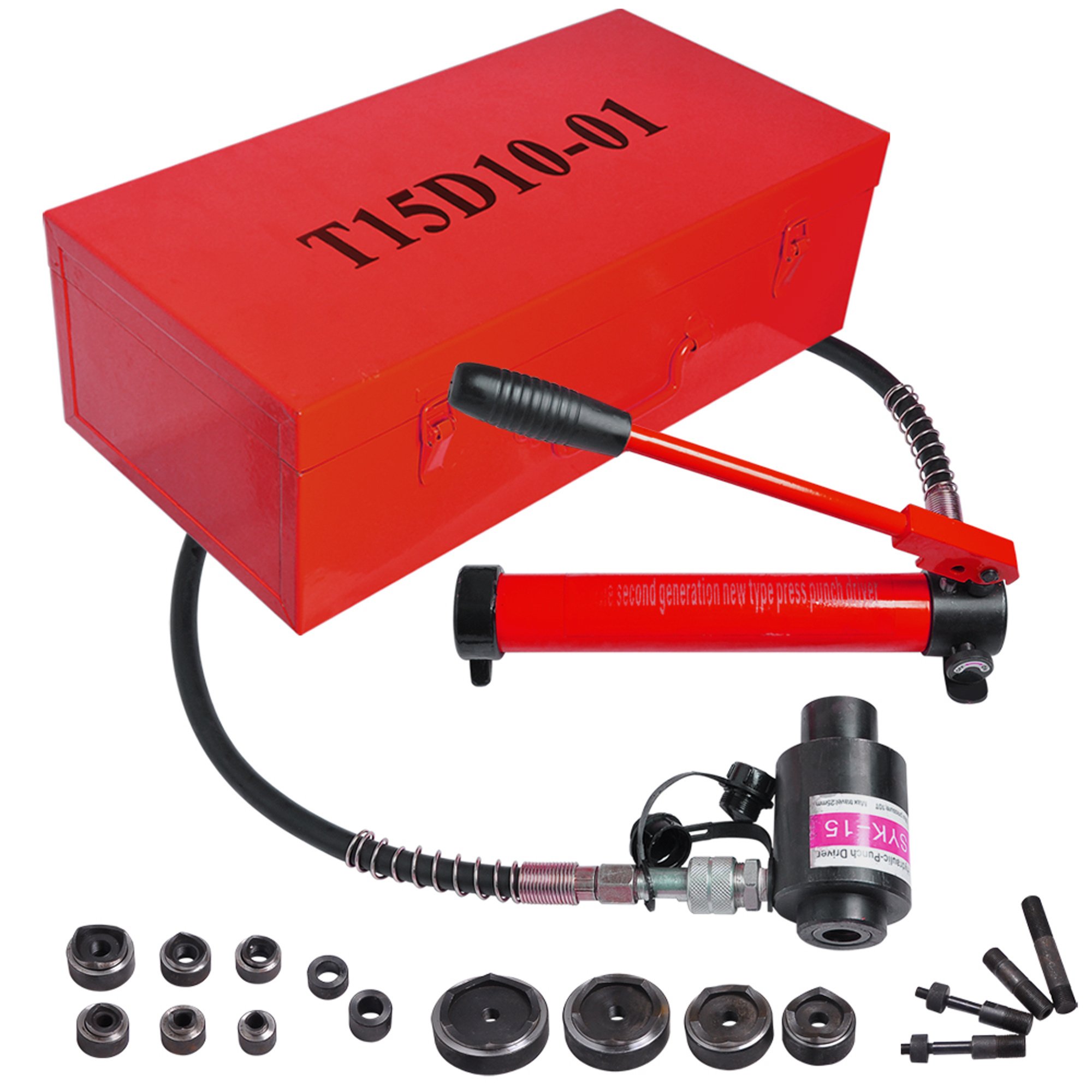

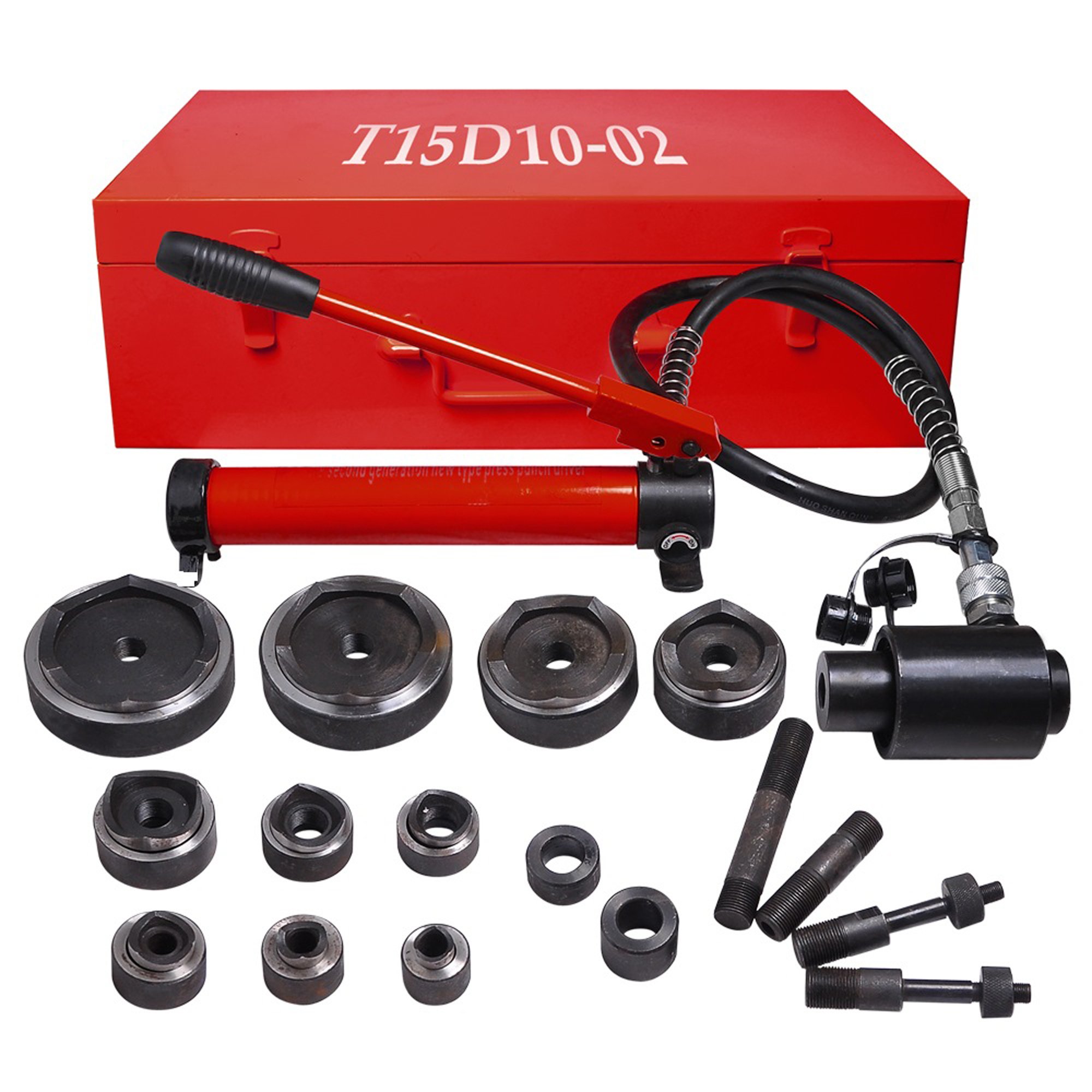

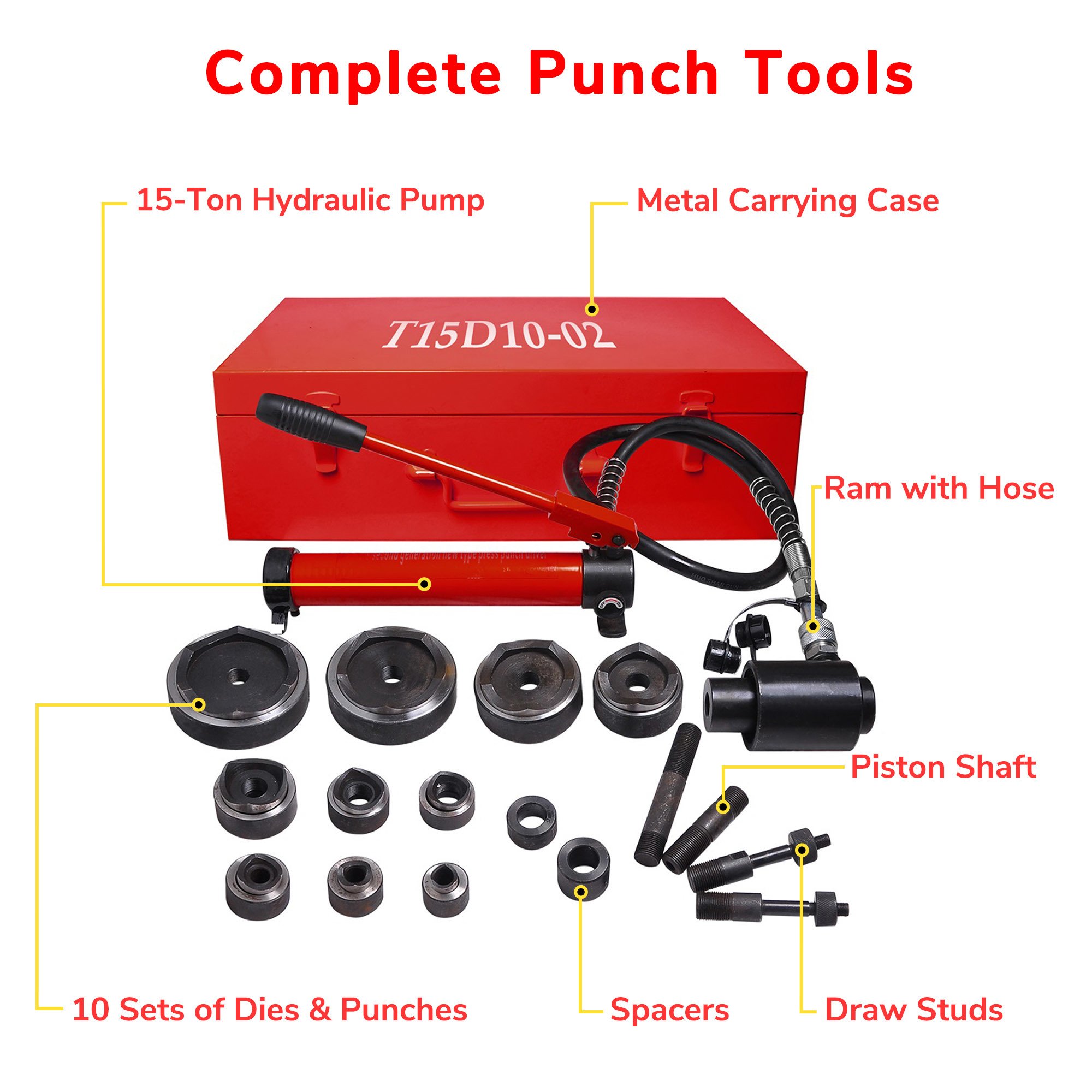

Package Content:

- 1x 15-Ton  Pump

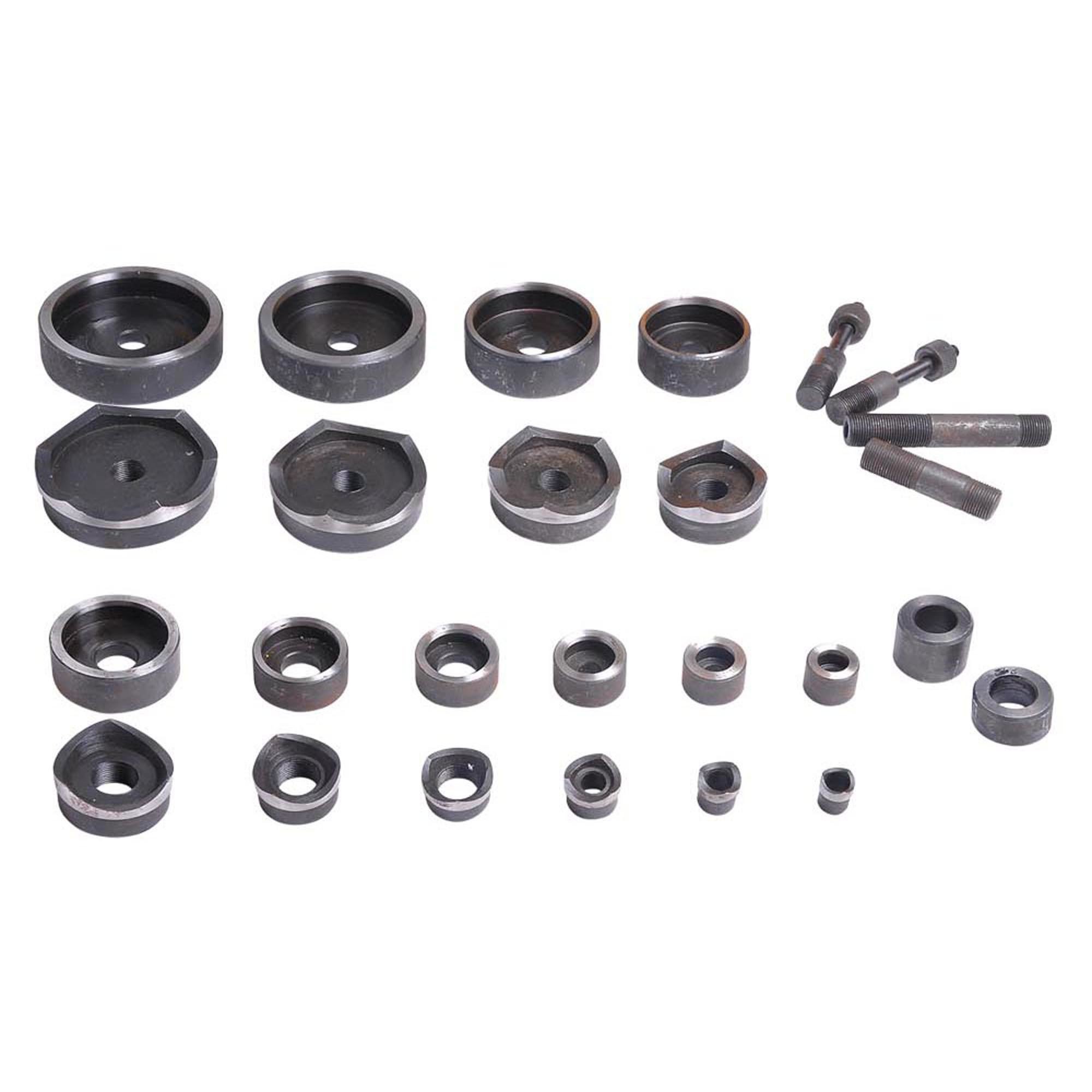

- 10 Sets of Dies & Punches

- 1x Ram with Hose

- 2x Draw Studs

- 2x Piston Shafts

- 2x Spacers

- 1x Metal Carrying Case

- 1x Manual

NOTICE:  Do Not Operate The Pump After Ram Motion Stops. Continuing to Operate The Pump Lever After The Ram Stops Will Damage The Ram
